FM Antenna System
| Model | Description | Type | Polarization | Horizontal pattern | Connectors | Max power(depend on connector) | Frequency range | Bandwidth | Gain(referred to half wave dipole) | Material and weight |
|---|---|---|---|---|---|---|---|---|---|---|
Dipole Antenna RFX
|
RFX is a dipole antenna, with linear polarization and omnidirectional pattern. Ideal for low power broadcast application. |
Half-Wave Dipole | Vertical/ Horizontal | Omnidirectional | N, DIN 7/16, EIA 7/8" | 600 W, 2.0 kW, 5.2 kW | 87.5-108 MHz | Broadband | 2.1 dB | Stainless steel 3.5 kg |
AKH/1
|
Low power FM dipole, linear polarization, omnidirectional; rugged, wideband, eco-friendly treatment. |
Dipole | Vertical | Omnidirectional | N, 7/16 | 8000 W (N) / 2000 W (7/16) | 87.5-108 MHz | Wide band | 2 dBd | Aluminum, 4 kg, 140x88x6 cm, wind 180 km/h |
RFK
|
RFK is a folded dipoles antenna, with circular polarization and omnidirectional pattern. Its uniform coverage is excellent for shadows filling. |
Double Folded Dipole | Circular | Omnidirectional | DIN 7/16, EIA 7/8" | 600 W, 2 kW, 5.2 kW | 87.5-108 MHz | Broadband | - 1.5 dB | Stainless steel 8.3 kg |
QAF
|
QAF is a crossed dipoles antenna, with circular polarization and directional pattern. Perfect for long distance coverage and for shadows filling. |
Double Crossed Dipole | Circular | Directional | DIN 7/16, EIA 7/8" | 2.0 kW, 5.2 kW | 87.5-108 MHz | Broadband | 2.7 dB | Stainless steel 24 kg |
CPN
|
CPN is a circular light dipole, with circular polarization and omnidirectional pattern. Ideal for low power broadcast application, it is great to fill the shadow areas. |
Curved Dipole | Circular | Omnidirectional | N, DIN 7/16 | 600 W, 1.2 kW | 87.5-108 MHz | +/- 0.5 MHz (tunable) | 0.2 dB | Stainless steel 3.5 kg |
2H-V
|
2H-V is a double dipole panel antenna, with linear polarization and directional pattern. Ideal for high power broadcast application, it is pressurizable and suitable for military standards. |
Double Panel | Vertical | Directional | DIN 7/16, EIA 7/8" | 2.0 kW, 5.2 kW | 87.5-108 MHz | Broadband | 7.5 dB | Stainless steel 67 kg |
DY3
|
DY3 is a 3-elements yagi antenna, with linear polarization and directional pattern. Ideal for low-medium power broadcast application, it is detachable for easy packing and shipping. |
3-Elements Yagi | Vertical / Horizontal | Directional | DIN 7/16, EIA 7/8" | 2.0 kW, 5.2 kW | 87.5-108 MHz | Broadband | 5.2 dB | Stainless steel 10.5 kg |
HPGA
|
HPGA is a circular panel antenna, with circular polarization and directional pattern. Ideal for high power broadcast application, it is pressurizable and suitable for military standards. |
Four Dipole Panel | Circular | Directional | EIA 7/8", 1+5/8", 3+1/8" | 5.2 kW, 12 kW, 20 kW | 87.5-108 MHz | Broadband | 7.8 dB | Stainless steel 90 kg |
HP-D
|
HP-D is a single dipole panel antenna, with linear polarization and directional pattern. Ideal for high power broadcast application, it is pressurizable and suitable for military standards. |
One Dipole Panel | Vertical / Horizontal | Directional | DIN 7/16, EIA 7/8" | 2.0 kW, 5.2 kW | 87.5-108 MHz | Broadband | 4.5 dB | Stainless steel 18 kg |

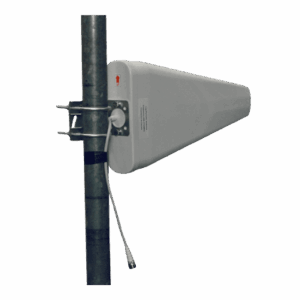

LOG 700-2700MHz
|
Wideband directional antenna, high gain, robust removable elements and radome for outdoor reliability. |
Log-periodic directional | Vertical / Horizontal | Front-to-back >20 dB | N female | 50 W | 700-2700 MHz | 700-2700 MHz | 11 dBi | Aluminium, 1.2 kg, wind 180 km/h |
LOG 800-2700
|
Log-periodic antenna for radio links with wideband directional pattern, dual polarization, and robust aluminum construction. |
Log-periodic directional | Vertical / Horizontal | Front to back >15 dB | N female | 30 W | 800-2700 MHz | 800-2700 MHz | 9-11 dBi | Aluminium, 0.8 kg |
